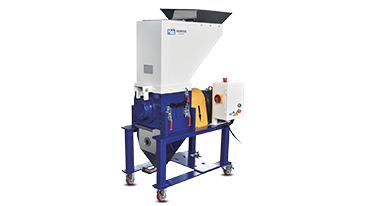

HGS Low Speed Crusher
• HGS series gear type crusher adopts the design principle of gear type cutter and cutting knife to achieve dust-free crushing effect.
• The machine is equipped with multiple protection devices for safe operation.
• This series is suitable for immediate recycling and crushing of thick and slender nozzles with strong toughness.
| Specifications | HGS250 | |
|---|---|---|
| Motor Power | KW | 1.5 |
| Blower Power | KW | — |
| Rotating speed | rpm | 20 |
| Claw tool | pcs | 2 |
| Tooth tool | pcs | 3 |
| Output | kg/hr | 10-15 |
| Weight | kg | 295 |
| Crushing Chamber | mm | 240×250 |
| Dimensions | ||
| H | mm | 1310 |
| H1 | mm | 1685 |
| W | mm | 595 |
| D | mm | 1070 |
| d1 | mm | 1540 |
| Specifications | HGS250B | |
|---|---|---|
| Motor Power | KW | 1.5 |
| Blower Power | KW | 0.75 |
| Rotating speed | rpm | 20 |
| Claw tool | pcs | 2 |
| Tooth tool | pcs | 3 |
| Output | kg/hr | 10-15 |
| Weight | kg | 320 |
| Crushing Chamber | mm | 240×250 |
| Dimensions | ||
| H | mm | 1310 |
| H1 | mm | 1685 |
| W | mm | 595 |
| D | mm | 995 |
| d1 | mm | 1540 |
| Specifications | HGS350 | |
|---|---|---|
| Motor Power | KW | 2.2 |
| Blower Power | KW | — |
| Rotating speed | rpm | 20 |
| Claw tool | pcs | 2 |
| Tooth tool | pcs | 3 |
| Output | kg/hr | 13-20 |
| Weight | kg | 450 |
| Crushing Chamber | mm | 330×350 |
| Dimensions | ||
| H | mm | 1455 |
| H1 | mm | 1910 |
| W | mm | 700 |
| D | mm | 1230 |
| d1 | mm | 1760 |
| Specifications | HGS350B | |
|---|---|---|
| Motor Power | KW | 2.2 |
| Blower Power | KW | 1.3 |
| Rotating speed | rpm | 20 |
| Claw tool | pcs | 2 |
| Tooth tool | pcs | 3 |
| Output | kg/hr | 13-20 |
| Weight | kg | 470 |
| Crushing Chamber | mm | 330×350 |
| Dimensions | ||
| H | mm | 1455 |
| H1 | mm | 1910 |
| W | mm | 700 |
| D | mm | 1150 |
| d1 | mm | 1760 |
| Specifications | HGS450 | |
|---|---|---|
| Motor Power | KW | 2.2 |
| Blower Power | KW | — |
| Rotating speed | rpm | 20 |
| Claw tool | pcs | 2 |
| Tooth tool | pcs | 3 |
| Output | kg/hr | 20-30 |
| Weight | kg | 610 |
| Crushing Chamber | mm | 430×430 |
| Dimensions | ||
| H | mm | 1645 |
| H1 | mm | 2225 |
| W | mm | 685 |
| D | mm | 1310 |
| d1 | mm | 1990 |
| Specifications | HGS450B | |
|---|---|---|
| Motor Power | KW | 2.2 |
| Blower Power | KW | 1.3 |
| Rotating speed | rpm | 20 |
| Claw tool | pcs | 2 |
| Tooth tool | pcs | 3 |
| Output | kg/hr | 20-30 |
| Weight | kg | 630 |
| Crushing Chamber | mm | 430×430 |
| Dimensions | ||
| H | mm | 1645 |
| H1 | mm | 2225 |
| W | mm | 685 |
| D | mm | 1310 |
| d1 | mm | 1990 |
