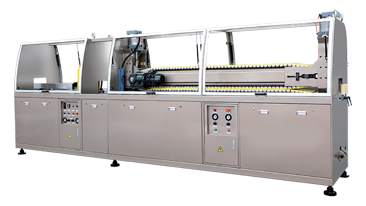

PVC, PP, PE Automatic Flaring Machine

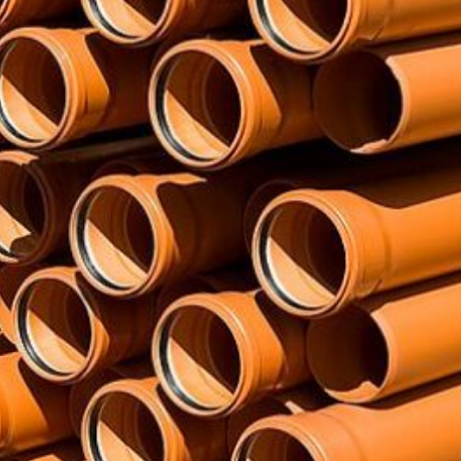

To construct a flow system, there is need to connect pipes without leakage. JINHU automatic flaring machine creates a funnel shape at the end of pipe, so that pipe can be fitted with tight seal. Flaring is a similar process to the pipe swaging in that a seal is created between two previously unattached pipes. After joining the pipes, liquids and gasses can pass through the pipes securely.
JINHU automatic flaring machine adopts foreign advanced equipment so that products have advantages of reasonable structure, beautiful appearance, advanced technology and easy operation.
JINHU automatic flaring machine is equipped with the corresponding reamer die of various specifications, which can complete the entire process of automatic production of plastic pipe within φ75 ~ φ630 specifications.
|
PVC, PP, PE AUTOMATIC FLARING MACHINE |
||
| Belling center height of Machine | 1100 ~ 1200mm | 900 ~ 1200mm |
| Diameter range of pipe | φ200 ~ 630mm | φ75 ~ 250mm |
| Maximum length of Pipe | 8000mm | 8000mm |
| Dimension of belling machine | 8466 × 2901 × 2499mm | 7656 × 1410 × 1900mm |
| Distance of moving | 900mm | 600mm |
| Total power of belling machine | 50KW | 32KW |
| Max. Outside heating power of heating furnace | 16.8KW | 15KW |
| Max. Inner heating power of heating furnace | 5KW | 3KW |
| Working pressure of hydraulic system | 1.5 ~ 5.5Mpa | 1.5 ~ 3.5Mpa |
| Max. Air pressure of belling machine | 0.7Mpa | 0.6Mpa |
| Weight of belling machine | 700Kg | 2800Kg |

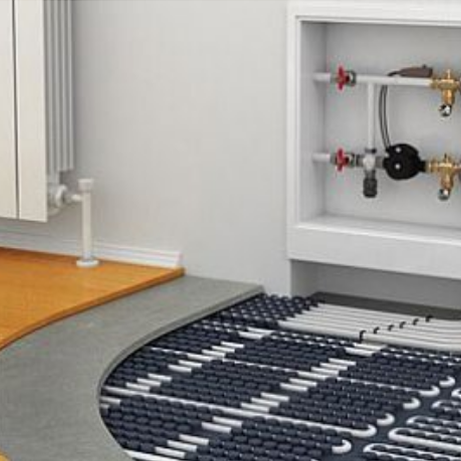

Applications
