The Tederic NEO E2 Injection Molding Machine integrates advanced electric technology with exceptional performance to deliver high-efficiency, precision molding. This machine is specialized for industries such as automotive, electronics, packaging, consumer goods, and medical. It offers faster cycle times, reduced energy consumption, and ensures superior part quality. With its energy-saving features and precise control, the NEO E2 enhances productivity, lowers operational costs, and improves product consistency. Businesses using this machine will experience increased efficiency and precision in their molding processes.
HiTECH MACHINERY proudly presents the Tederic brand, renowned for its quality, precision, and innovation. The NEO E2 is the perfect choice for businesses seeking faster production cycles and high-quality output while reducing operational costs.
HiTECH MACHINERY offers the full range of the Tederic NEO E2 Machine Series, spanning from the entry-level NEO·E60II – E80 to the high-performance NEO·E1400II – E9500 models. Each machine in the NEO E2 series is designed to meet a variety of production needs. Whether you require a cost-effective electric solution or a high-end model with the latest in electric technology, the NEO E2 series offers the ideal choice. With cutting-edge electric technology in every model, the series ensures outstanding energy efficiency, exceptional molding precision, and superior product quality across a broad range of materials and applications.
NEO·E60II - e 80
| Screw Model | A-B-C |
| Screw Dia (mm) | 20 22 25 |
| Injection weight PS (g) | 27 33 42 |
| Max. injection speed | / |
NEO·E60II - e 110
| Screw Model | A-B-C |
| Screw Dia (mm) | 22 25 28 |
| Injection weight PS (g) | 36 47 59 |
| Max. injection speed | / |
NEO·E60II - e 80h
| Screw Model | A-B-C |
| Screw Dia (mm) | 20 22 25 |
| Injection weight PS (g) | 27 33 42 |
| Max. injection speed | 400 |
NEO·E60II - e 110h
| Screw Model | A-B-C |
| Screw Dia (mm) | 22 25 28 |
| Injection weight PS (g) | 36 47 59 |
| Max. injection speed | 400 |

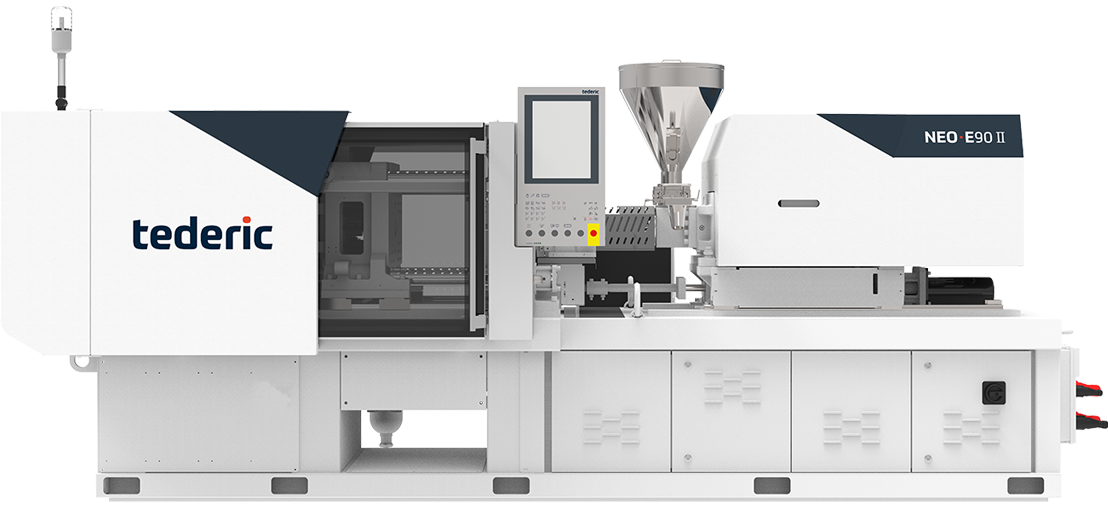

NEO·E90II - e 110
| Screw Model | A-B-C |
| Screw Dia (mm) | 22 25 28 |
| Injection weight PS (g) | 36 47 59 |
| Max. injection speed | / |
NEO·E90II - e 160
| Screw Model | A-B-C |
| Screw Dia (mm) | 25 28 32 |
| Injection weight PS (g) | 54 67 88 |
| Max. injection speed | 200 |
NEO·E90II - e 220
| Screw Model | A-B-C |
| Screw Dia (mm) | 28 32 35 |
| Injection weight PS (g) | 76 99 118 |
| Max. injection speed | 200 |
NEO·E90II - e 110h
| Screw Model | A-B-C |
| Screw Dia (mm) | 22 25 28 |
| Injection weight PS (g) | 36 47 59 |
| Max. injection speed | 400 |
NEO·E90II - e 160h
| Screw Model | A-B-C |
| Screw Dia (mm) | 25 28 32 |
| Injection weight PS (g) | 54 67 88 |
| Max. injection speed | 400 |
NEO·E90II - e 220h
| Screw Model | A-B-C |
| Screw Dia (mm) | 28 32 35 |
| Injection weight PS (g) | 76 99 118 |
| Max. injection speed | 400 |

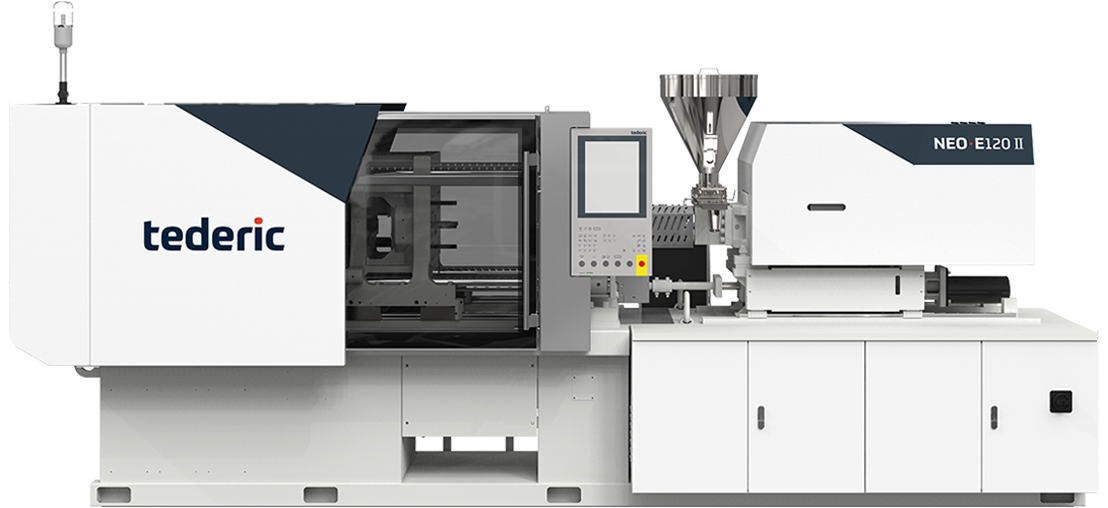

NEO·E120II - e 160
| Screw Model | A-B-C |
| Screw Dia (mm) | 25 28 32 |
| Injection weight PS (g) | 54 67 88 |
| Max. injection speed | 200 |
NEO·E120II - e 220
| Screw Model | A-B-C |
| Screw Dia (mm) | 28 32 35 |
| Injection weight PS (g) | 76 99 118 |
| Max. injection speed | 200 |
NEO·E120II - e 360
| Screw Model | A-B-C |
| Screw Dia (mm) | 35 38 42 |
| Injection weight PS (g) | 140 165 202 |
| Max. injection speed | 200 |
NEO·E120II - e 160h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 25 28 32 |
| Injection weight PS (g) | 54 67 88 |
| Max. injection speed | 400 |
NEO·E120II - e 220h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 28 32 35 |
| Injection weight PS (g) | 76 99 118 |
| Max. injection speed | 400 |
NEO·E120II - e 360h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 35 38 42 |
| Injection weight PS (g) | 140 165 202 |
| Max. injection speed | 400 |
NEO·E160II - e 360/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 35 38 42 |
| Injection weight PS (g) | 140 165 202 |
| Max. injection speed | 200 |
NEO·E160II - e 500
| Screw Model | A-B-C |
| Screw Dia (mm) | 38 42 45 |
| Injection weight PS (g) | 186 227 261 |
| Max. injection speed | 200 |
NEO·E160II - e 620/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 200 |
NEO·E160II - e 360h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 35 38 42 |
| Injection weight PS (g) | 140 165 202 |
| Max. injection speed | 200 |
NEO·E160II - e 500h
| Screw Model | A-B-C |
| Screw Dia (mm) | 38 42 45 |
| Injection weight PS (g) | 186 227 261 |
| Max. injection speed | 400 |
NEO·E160II - e 620h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 400 |
NEO·E160II - e 620f/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 400 |

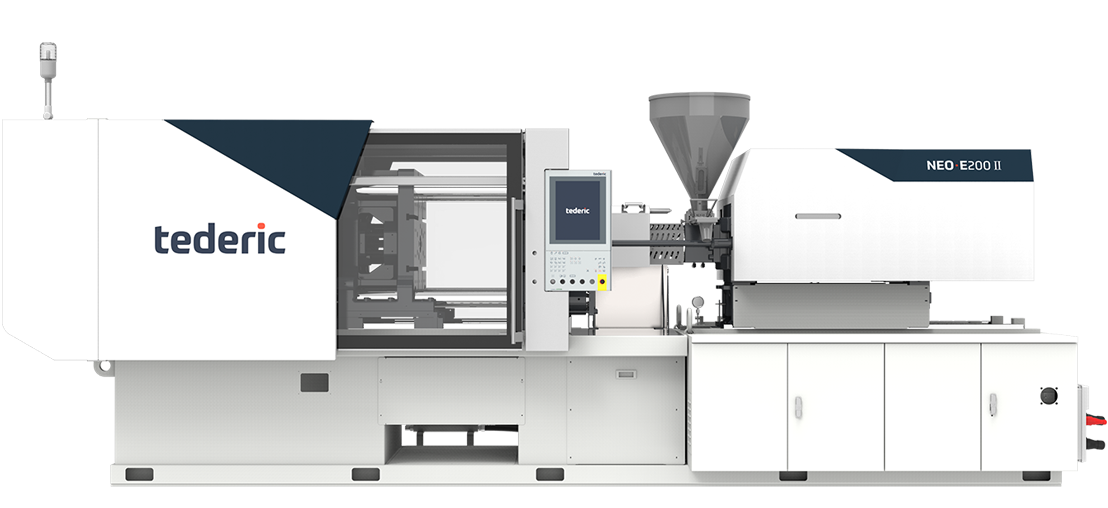

NEO·E200II - e500
| Screw Model | A-B-C |
| Screw Dia (mm) | 38 42 45 |
| Injection weight PS (g) | 186 227 261 |
| Max. injection speed | 200 |
NEO·E200II - e620/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 200 |
NEO·E200II - e840/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 160(200) |
NEO·E200II - e500h
| Screw Model | A-B-C |
| Screw Dia (mm) | 38 42 45 |
| Injection weight PS (g) | 186 227 261 |
| Max. injection speed | 400 |
NEO·E200II - e620h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 400 |
NEO·E200II - e840h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 300 |
NEO·E200II - e620f
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 400 |
NEO·E200II - e840f/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 500 |

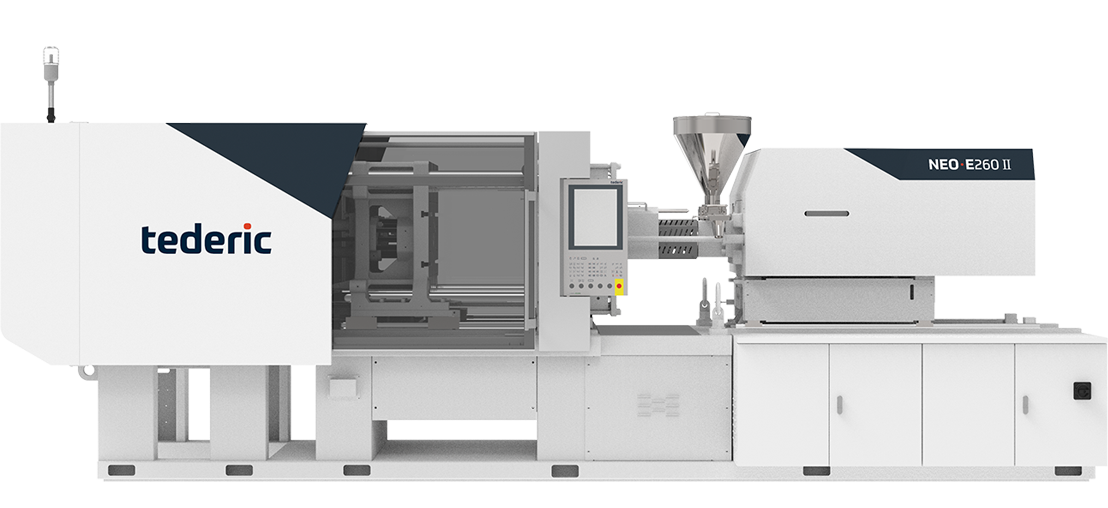

NEO·E260II - e620/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 200 |
NEO·E260II - e840
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 160(200) |
NEO·E260II - e1100/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 160(200) |
NEO·E260II - e620h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 400 |
NEO·E260II - e840h
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 300 |
NEO·E260II - e1100h/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 160(200)300 |
NEO·E260II - e620f/u>
| Screw Model | A-B-C |
| Screw Dia (mm) | 42 45 50 |
| Injection weight PS (g) | 246 282 348 |
| Max. injection speed | 400 |
NEO·E260II - e840f
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 500 |
NEO·E260II - e1100f
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 500 |
NEO·E320II - e840
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 160(200) |
NEO·E320II - e1100
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 160(200) |
NEO·E320II - e1400
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 160(200) |
NEO·E320II - e840h
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 300 |
NEO·E320II - e1100h
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 300 |
NEO·E320II - e1400h
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 300 |
NEO·E320II - e840f
| Screw Model | A-B-C |
| Screw Dia (mm) | 45 50 55 |
| Injection weight PS (g) | 311 384 465 |
| Max. injection speed | 500 |
NEO·E320II - e1100f
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 500 |
NEO·E320II - e1400f
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 500 |

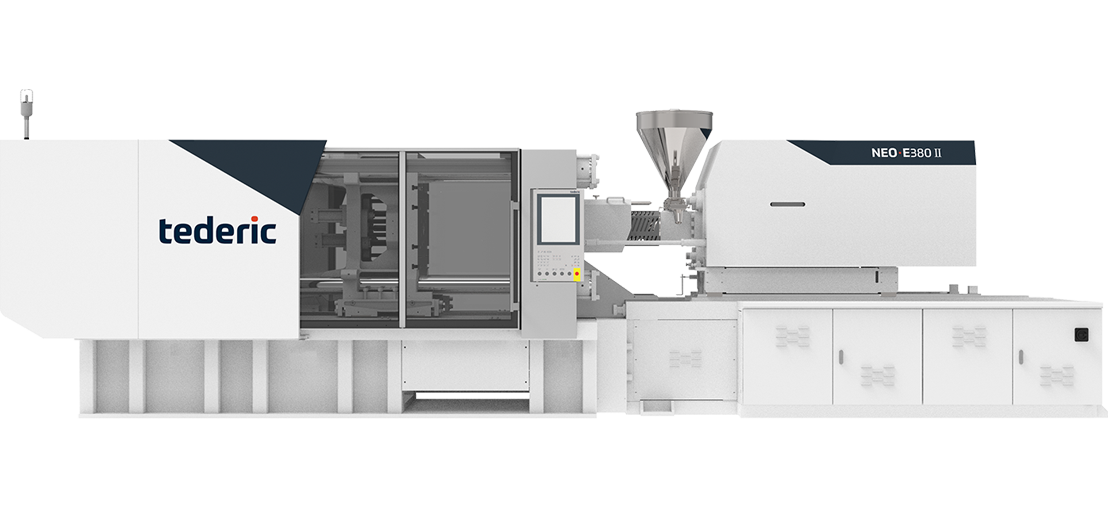

NEO·E380II - e1100
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 160(200) |
NEO·E380II - e1400
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 160(200) |
NEO·E380II - e1700
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 160(200) |
NEO·E380II - e1100h
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 300 |
NEO·E380II - e1400h
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 300 |
NEO·E380II - e1700h
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 250 |
NEO·E380II - e1100f
| Screw Model | A-B-C |
| Screw Dia (mm) | 50 55 60 |
| Injection weight PS (g) | 429 519 618 |
| Max. injection speed | 500 |
NEO·E380II - e1400f
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 500 |
NEO·E380II - e1700f
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 500 |

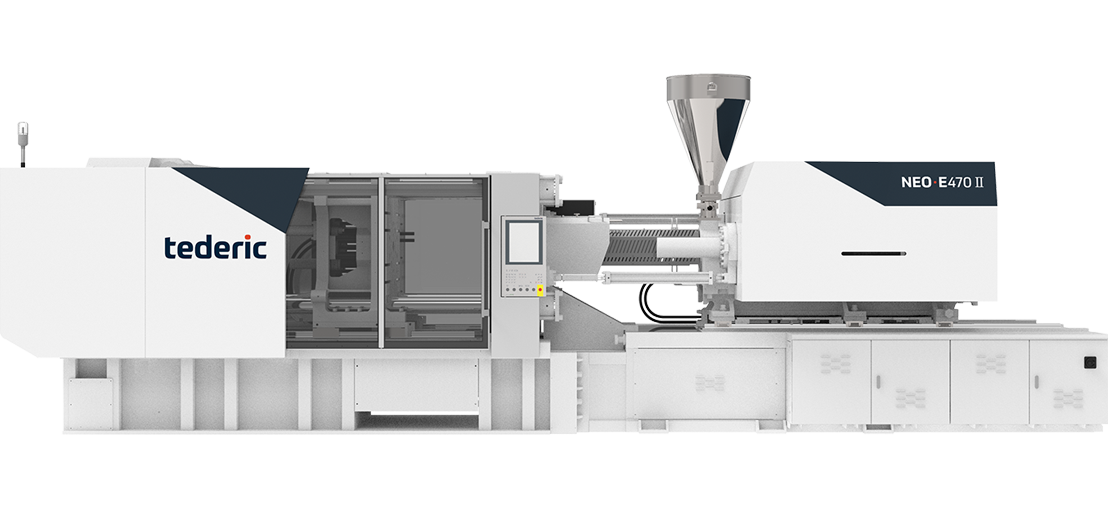

NEO·E470II - e1400
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 160(200) |
NEO·E470II - e1700
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 160(200) |
NEO·E470II - e2300
| Screw Model | A-B-C |
| Screw Dia (mm) | 65 70 80 |
| Injection weight PS (g) | 981 1138 1487 |
| Max. injection speed | 160(200) |
NEO·E470II - e1400h
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 300 |
NEO·E470II - e1700h
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 250 |
NEO·E470II - e1400f
| Screw Model | A-B-C |
| Screw Dia (mm) | 55 60 65 |
| Injection weight PS (g) | 562 669 785 |
| Max. injection speed | 500 |
NEO·E470II - e1700f
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 500 |

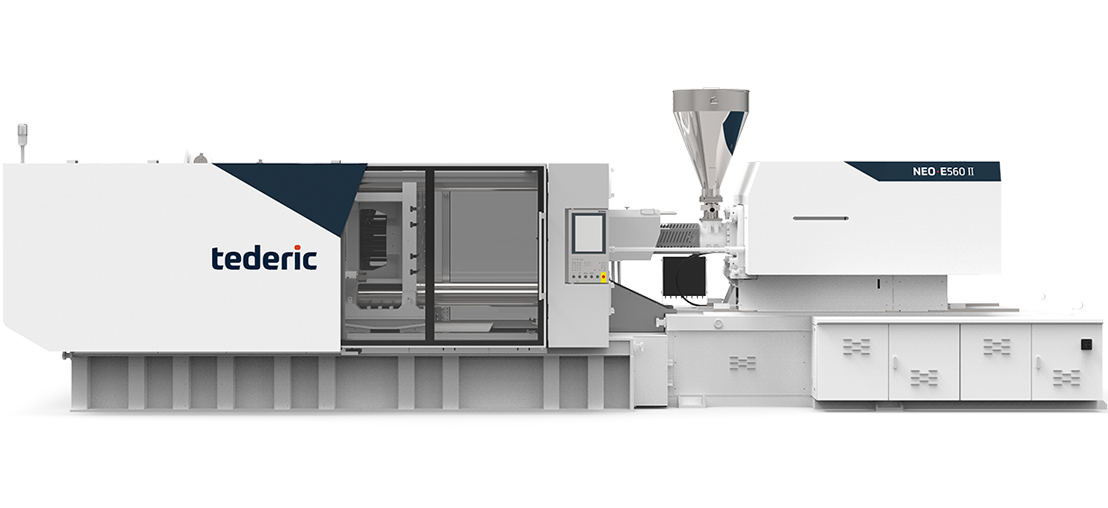

NEO·E560II - e1700
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 160(200) |
NEO·E560II - e2300
| Screw Model | A-B-C |
| Screw Dia (mm) | 65 70 80 |
| Injection weight PS (g) | 981 1138 1487 |
| Max. injection speed | 160(200) |
NEO·E560II - e3400
| Screw Model | A-B-C |
| Screw Dia (mm) | 70 80 90 |
| Injection weight PS (g) | 1296 1693 2142 |
| Max. injection speed | 160(200) |
NEO·E560II - e1700h
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 250 |
NEO·E560II - e1700f
| Screw Model | A-B-C |
| Screw Dia (mm) | 60 65 70 |
| Injection weight PS (g) | 720 846 981 |
| Max. injection speed | 500 |

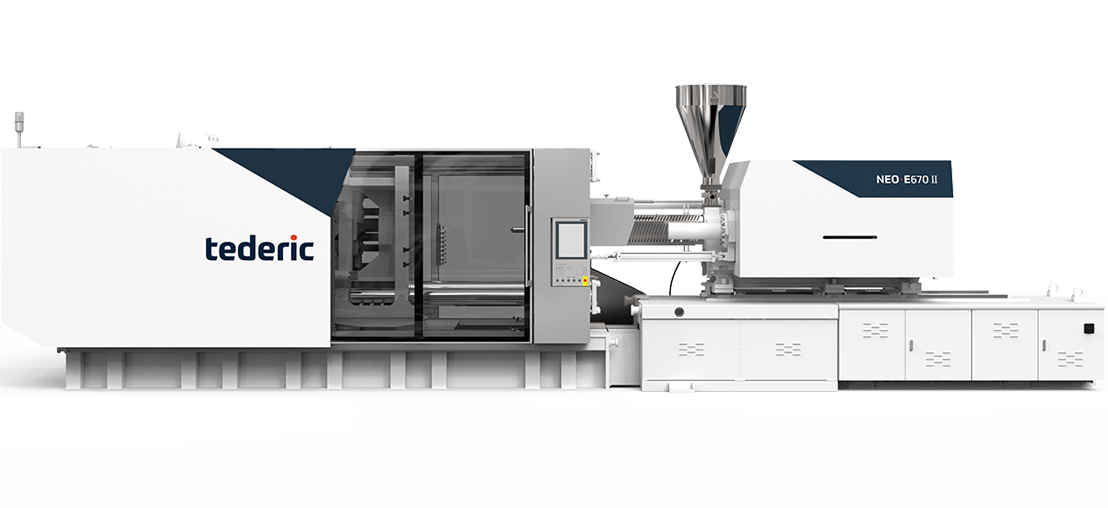

NEO·E670II - e2300
| Screw Model | A-B-C |
| Screw Dia (mm) | 65 70 80 |
| Injection weight PS (g) | 981 1138 1487 |
| Max. injection speed | 160(200) |
NEO·E670II - e3400
| Screw Model | A-B-C |
| Screw Dia (mm) | 70 80 90 |
| Injection weight PS (g) | 1296 1693 2142 |
| Max. injection speed | 160(200) |
NEO·E670II - e5300
| Screw Model | A-B-C |
| Screw Dia (mm) | 80 90 100 |
| Injection weight PS (g) | 2058 2605 3216 |
| Max. injection speed | 160(200) |
NEO·E850II - e2300
| Screw Model | A-B-C |
| Screw Dia (mm) | 65 70 80 |
| Injection weight PS (g) | 981 1138 1487 |
| Max. injection speed | 160(200) |
NEO·E850II - e3400
| Screw Model | A-B-C |
| Screw Dia (mm) | 70 80 90 |
| Injection weight PS (g) | 1296 1693 2142 |
| Max. injection speed | 160(200) |

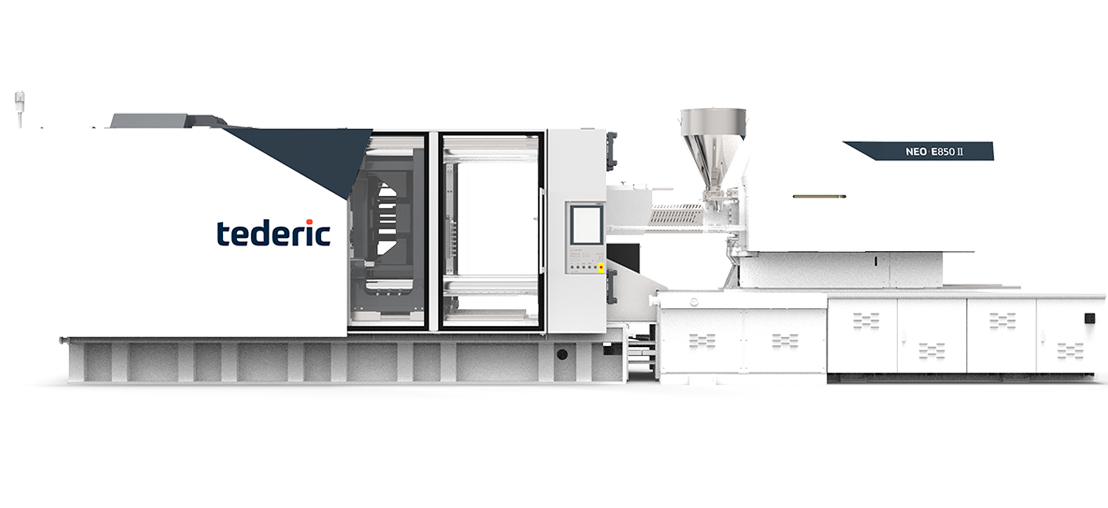

NEO·E850II - e5300
| Screw Model | A-B-C |
| Screw Dia (mm) | 80 90 100 |
| Injection weight PS (g) | 2058 2605 3216 |
| Max. injection speed | 160(200) |
NEO·E1080II - e5300
| Screw Model | A-B-C |
| Screw Dia (mm) | 80 90 100 |
| Injection weight PS (g) | 2058 2605 3216 |
| Max. injection speed | 160(200) |
NEO·E1080II - e7300
| Screw Model | A-B-C |
| Screw Dia (mm) | 90 100 110 |
| Injection weight PS (g) | 2895 3574 4324 |
| Max. injection speed | 150(185) |

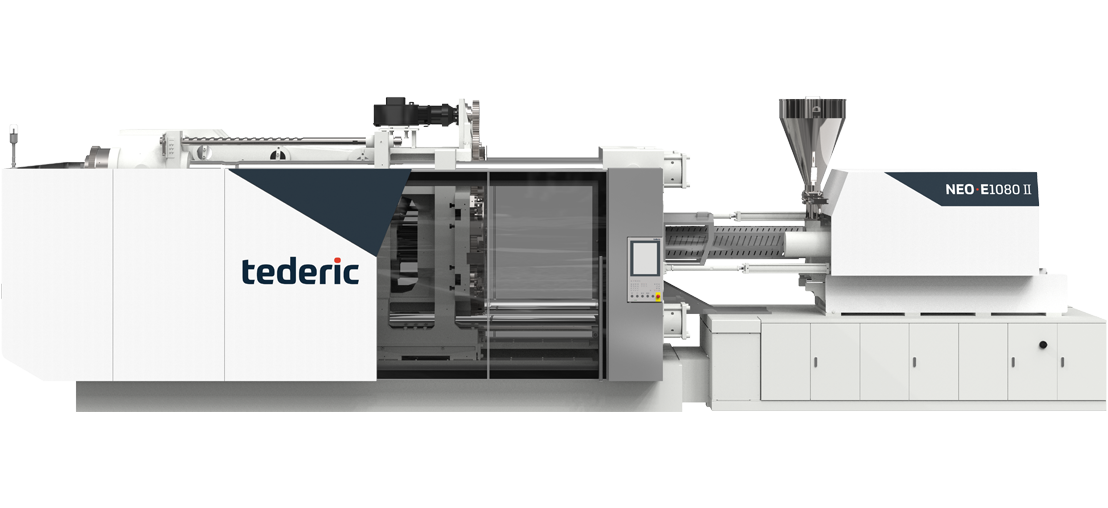

NEO·E1080II - e9500
| Screw Model | A-B-C |
| Screw Dia (mm) | 100 110 120 |
| Injection weight PS (g) | 3857 4667 5554 |
| Max. injection speed | 150 |
NEO·E1400II - e5300
| Screw Model | A-B-C |
| Screw Dia (mm) | 80 90 100 |
| Injection weight PS (g) | 2058 2605 3216 |
| Max. injection speed | 160(200) |
NEO·E1400II - e7300
| Screw Model | A-B-C |
| Screw Dia (mm) | 90 100 110 |
| Injection weight PS (g) | 2895 3574 4324 |
| Max. injection speed | 150(185) |

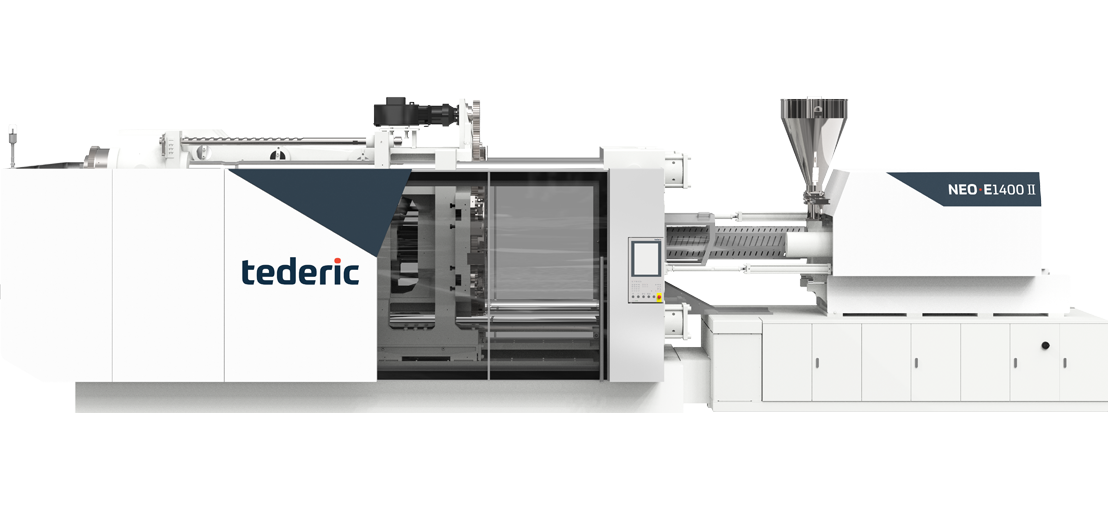

NEO·E1400II - e9500
| Screw Model | A-B-C |
| Screw Dia (mm) | 100 110 120 |
| Injection weight PS (g) | 3857 4667 5554 |
| Max. injection speed | 150 |
Automotive
Home
Appliances
Logistics
Envoirnment
Protection
Teletronic
The Tederic NEO E2 Injection Molding Machine delivers exceptional precision and energy efficiency. Featuring an advanced energy recovery system, it offers up to 15% energy savings compared to other electric machines. The injection unit, which includes a hopper, barrel, screw, and nozzle, ensures high-precision material injection, while the electric drive system guarantees reliable and cost-effective operation. Exceeding the EUROMAP 60.1 energy standards with a 9+ rating, the NEO E2 combines energy savings, fast production, and consistent quality, making it a top choice for high-efficiency manufacturing.
Spinsure ™ -V vertical rotary table structure.
180° vertical rotary table with diameter from 730mm to 1500mm, providing double station operation.
Rotary table driven by hydraulic or servo motor as option.
Multiple injection units
Injection unit can be chosen from any pair of parallel , right angle, vertical, oblique layout.
Achieve the parallel actions
Two sets independent servo systems can achieve the parallel actions, ensuring high efficiency, energy saving, and steady.
Tightly sealed electric cabinet
Tightly sealed electrical cabinet with independent and compact components layout has dust proof and anti-static interference function, which ensures the safety of the machine.
High performamce controller
Humanizied controller transmits data fastly.
Professional multi-components control program ensures all kinds of multi-colors & components molding process.
