Winder

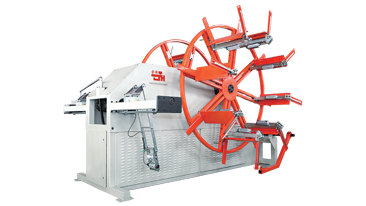

As Hi TECH Machinery General Trading L.L.C promise to fulfill all the customer’s requirements, so the company offers all types of auxiliary tools needed in pipe production line. Winder plays an important role when small or flexible parts are desired to wind or rolling. Winder is similar to coiling except there is a carrier spool/reel mounted on the winder over a single shaft that is connected to drive the spool/reel.
|
Winder |
||||
| Model | SPS-32 SPS-32
Double station |
SPS-63 SPS-63
Double station |
SP-110 SP-110
Single station |
|
| Inner diameter of Coil | mm | 480-800 | 600-1200 | 2500-3500 |
| Outer diameter | mm | 800-1200 | 1400-2000 | – |
| Coil width | 200-370 | 360-560 | 700 | |
| Winding speed | m/min | 1-20 | 1-20 | 0.5-5 |
| Pipe diameter | φ16-φ32 | φ32-φ63 | φ63-φ110 | |
| Moment motor | N.M | 10 | 25 | 40 |
